5 port 10/100M PoE switch with 1x 60W high power PoE port & 1x SC Fiber Uplink
Product Advantages
· Single port supported high power PoE, special for high speed dome
· Supply power to wireless access points and surveillance cameras over Cat-5 cabling
· 4x 10/100Mbps PoE ports+ 1x optical fiber SC interface
· 1 PoE port supports 60W high power
· Total power budget is up to 70W
· Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
· 2K entry MAC address table of the PoE Switch with auto-learning and auto-aging
· LED indicators for monitoring power, link, activity and speed
· External power adapter supply
Technical Indexes
| Technical parameter list |
| Product Name | 4 Port Ethernet PoE Switch with 1x High Power(60W) & 1x Fiber |
| Model | LNK-HP1460 |
| Connector Type | 4x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX), including 1x 60W high power PoE port & 1x SC Fiber uplink |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP (≤100 meter) |
| Bandwidth | 800Mbps |
| Address Database Size | 1K |
| MTBF | 60,000 hours |
| Forwarding Mode | Store-And-Forward Architecture |
| Network Latency | Switch Throughput:0.74Mpps@64Bytes |
| Network Protocols | IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI; IEEE 802.3af |
| LED Display | Power, Ethernet Data, PoE working status |
| Power | Maximum PoE power in total: 70W 1x high power PoE port with maximum power: 60W Power for each PoE port:15.4 W Power input: AC100-240V 50/60Hz; (every country use a custom power plug) |
| Working Environment | Working temperature:-20°～ +60°C , Storage temperature: -40°～ 85°C, Working Humidity: 5%～95%, non-condensing |
| Radiation | CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B |
| Transmission Distance | MMF: 2KM; 25KM |
| QoS | Yes |
| NMP | NO |
| VLAN | NO |
| Product Size | 118x89x25mm, 0.26kg |
| Package Size | 250x205x87mm,1.1kg |
| Warranty | Switch warranty: 1 year, Adapter warranty: 2 years. Lifetime Maintenance |
Overview
This LNK-HP1460 series switch provides a network point for power supply and data transmission. All the 4 Ethernet ports can be connected with 10/100Mps quickly. The uplink port optical fiber SC interface. 1-4 port can provide power supply with IEEE 802.3af standard, among which 1 port supports super high power 60W for each.

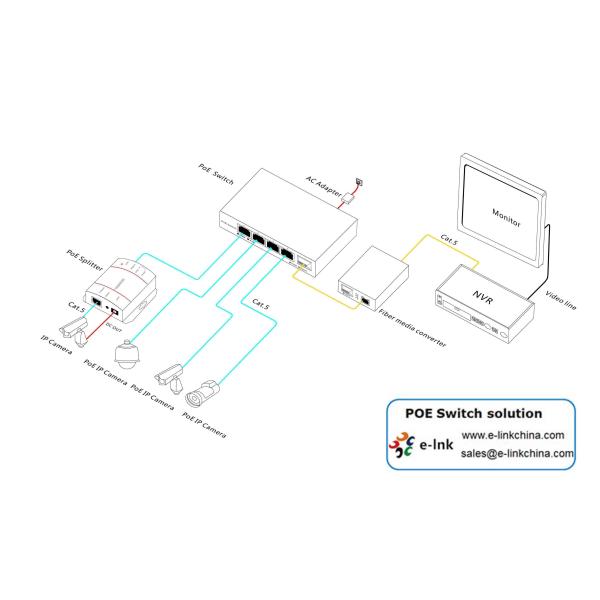

Application
Ordering Information
| Model | Description |
| LNK-M4024GP-SFP | 24x10/100/1000M TP ports (24 POE-PSE -IEEE802.3af/at 15.4W/30W) + 4 1000M SFP Fiber cascaded/uplink, 1U rack type, inside power AC110V/220V, POE 390W,Total 430W, support WEB Management |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Rack-mount |
