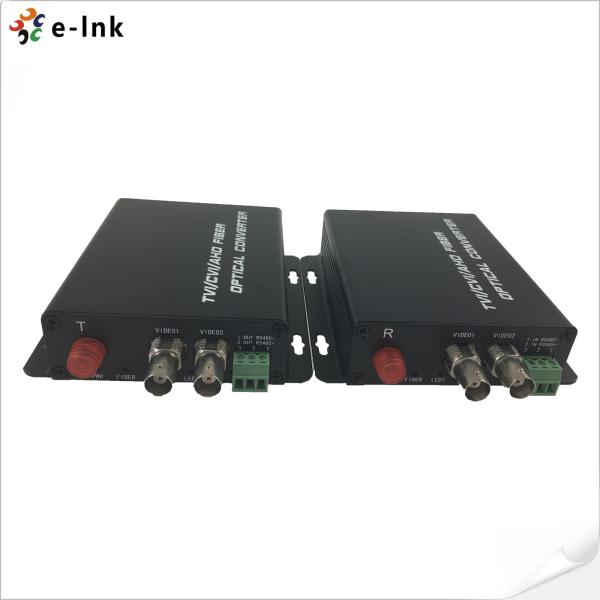

2Ch HD-AHD CVI TVI CVBS Video Fiber Converter Single Mode FC 20KM 720P 960P

  • 1
  • 2
  • 3

Brand Name : E-link

Model Number : LNK-2ACT-20

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pair

Price : $29-769

Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000 pairs/month

Delivery Time : 5-12 Working days

Packaging Details : Video Fiber Converter Standard Export Package

Keyword : Video Fiber Converter 960P

Video Format : HD-AHD CVI TVI CVBS

Number of Channels : 2 Channels

Resolution : 720P 960P

Wavelength : 1310nm/1550nm

Fiber Type : Single mode single fiber

Optical connector : FC, ST or SC Optional

PTZ Data : RS485, RS232, RS422 Optional

Contact Now

2Ch HD-AHD CVI TVI CVBS 4-In-1 Video Fiber Converter Single Mode FC 20KM 720P 960P

Coaxial to Fiber Optic Converter Advantages

► Support transmission of combined AHD, HDCVI, HD-TVI or CVBS signal

► Controlling PTZ data RS485 simultaneously though fiber optical cable

► Support 720p/50, 720p/60, 1080p/25, 1080p/30 videos etc.

► Industrial wide range of operational temperature.

BNC to Fiber Converter Technical Indexes

Optical Fiber

Output Power

-8~3dBm

Rx sensitivity

-26dBm

Optical connector

FC (default), ST or SC (optional)

Video

Number of Channels

2

Video Bandwidth

50MHz

Sampling Bandwidth

8bit

Sampling Frequency

108MHz

Connector

BNC

PTZ Data

Protocol

Default: RS485 (RS232/RS422 Optional)

Number of channels

1

Connector

3pins Terminal Blocks

Data Rate

0-200Kbps

Directions

Default :Simplex from Rx to Tx (BIDI duplex optional)

Fiber Optic To Coaxial Converter​ Overview

E-link 2Ch AHD/CVI/TVI/CVBS Fiber optic transceiver can simultaneously transmit 2 channels AHD, HD-CVI, HD-TVI or CVBS Video over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. It supports input video format as 25/30/50/60fps@720P & 25/30fps@1080P.
2Ch HD-AHD CVI TVI CVBS Video Fiber Converter Single Mode FC 20KM 720P 960P

2Ch HD-AHD CVI TVI CVBS Video Fiber Converter Single Mode FC 20KM 720P 960P

Fiber Optic CCTV Video Converters​ Ordering Information

Model

Details

LNK-2ACT-20

2-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-2ACT-20R

2-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-2HACT-20

2-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-2HACT-20R

2-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
